Jul 12, 2013 @ 7:06pm
Jul 12, 2013 @ 7:06pm

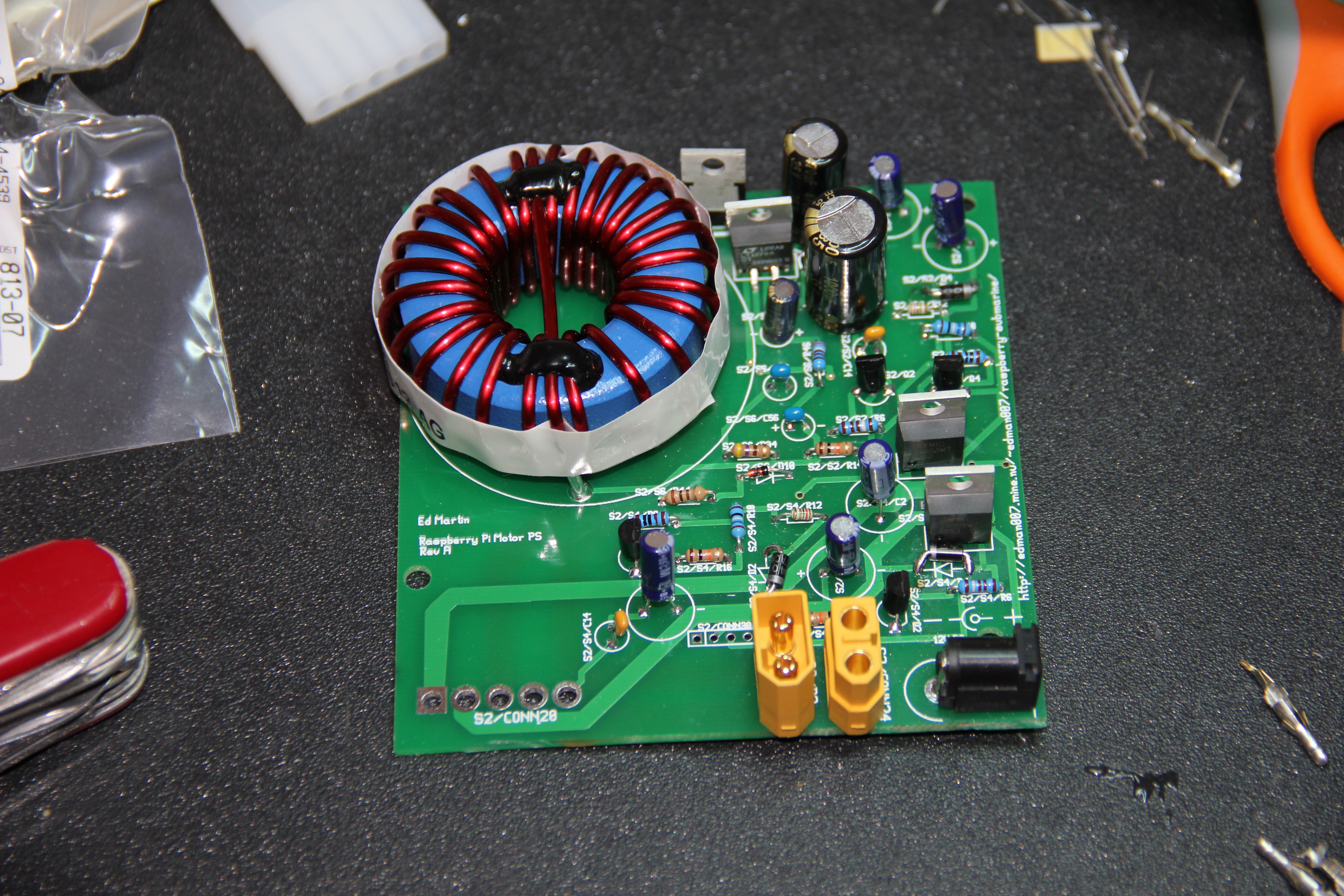

After soldering everything on.
Jul 12, 2013 @ 7:06pm
Jul 12, 2013 @ 7:06pm
Jul 12, 2013 @ 7:22pm

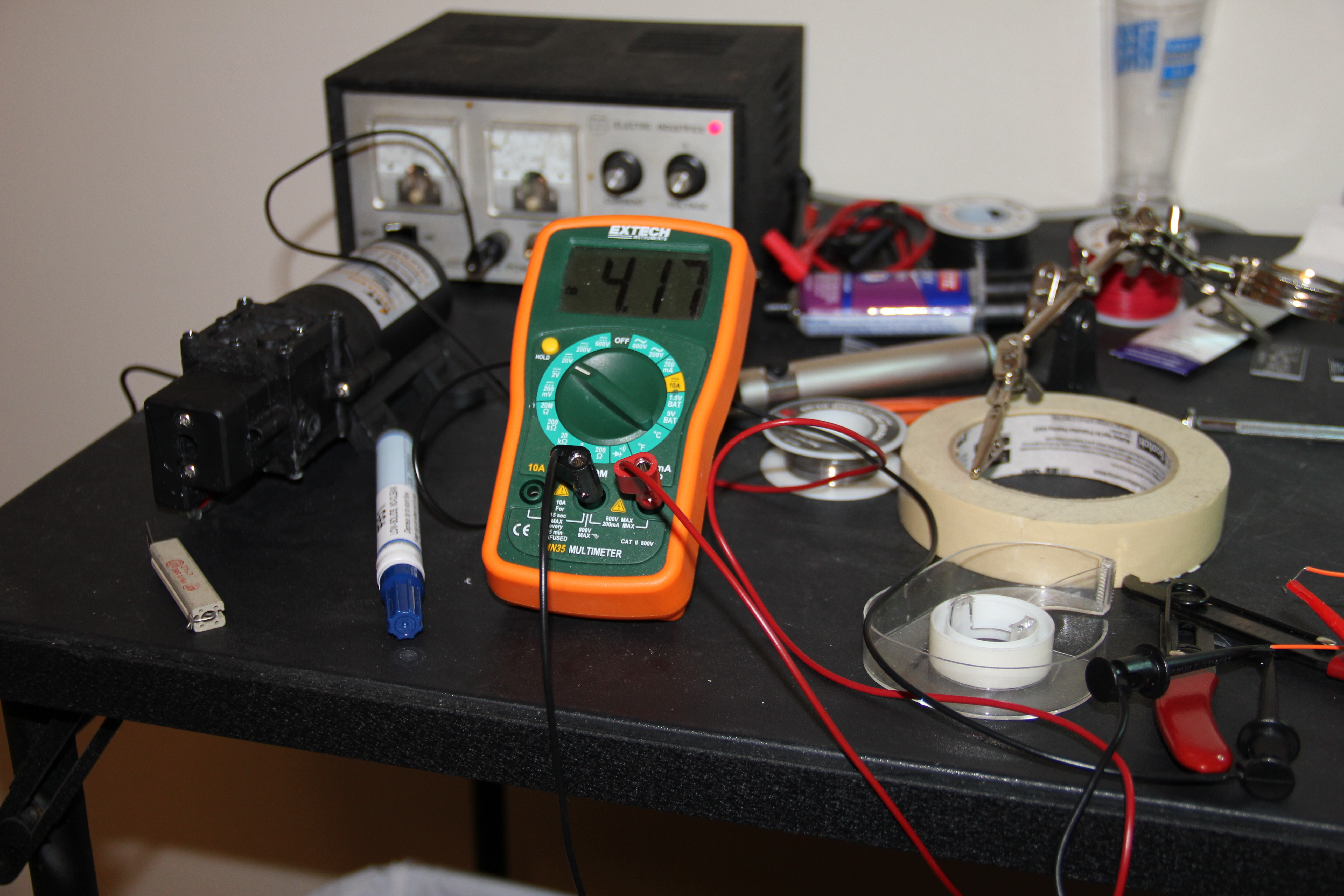

Build it, power it up, and the 5V output gets 4V! Something is wrong!
Jul 12, 2013 @ 7:24pm

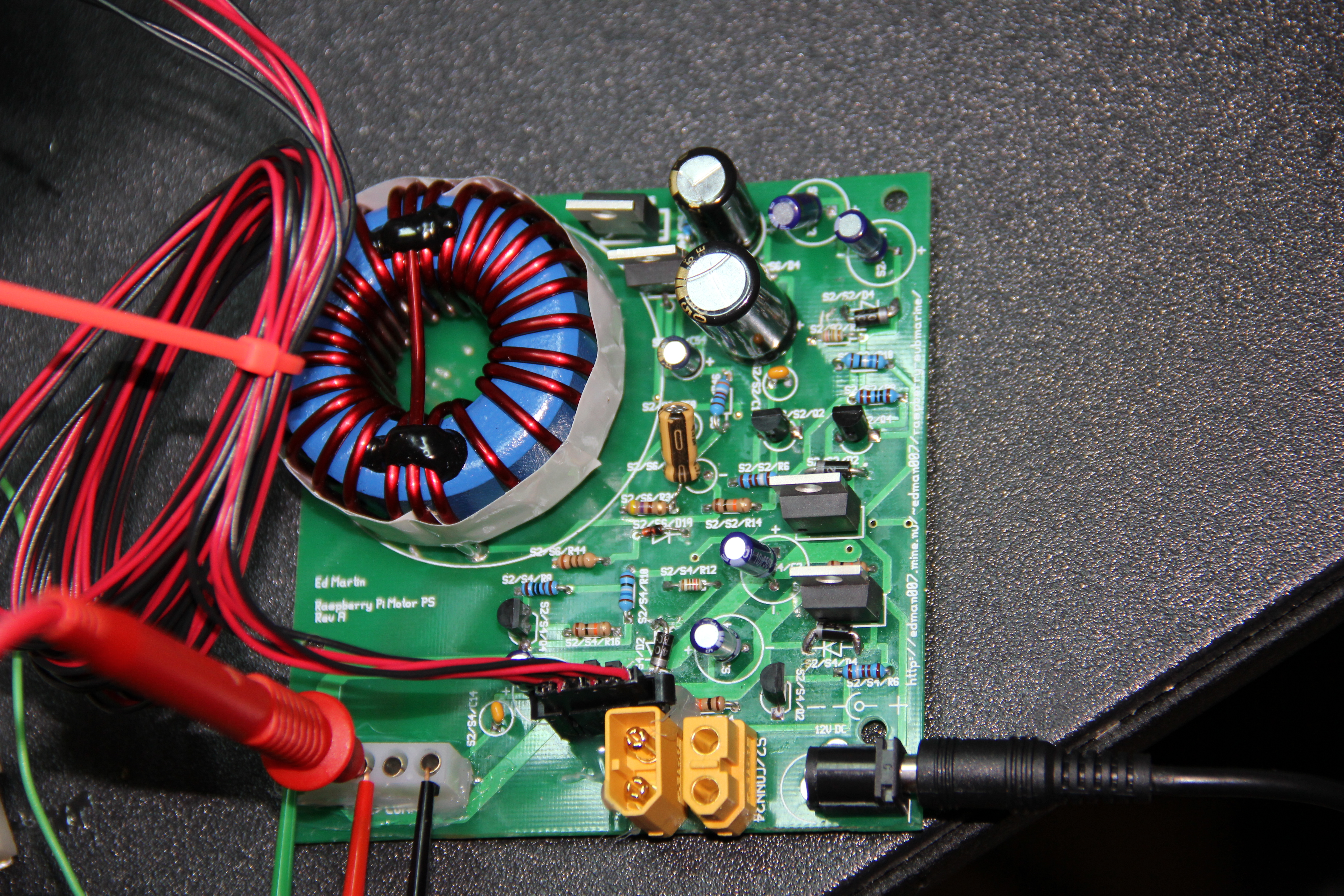

Found the problem, the orange capacitor was in the wrong spot. Fixed
Jul 12, 2013 @ 7:22pm

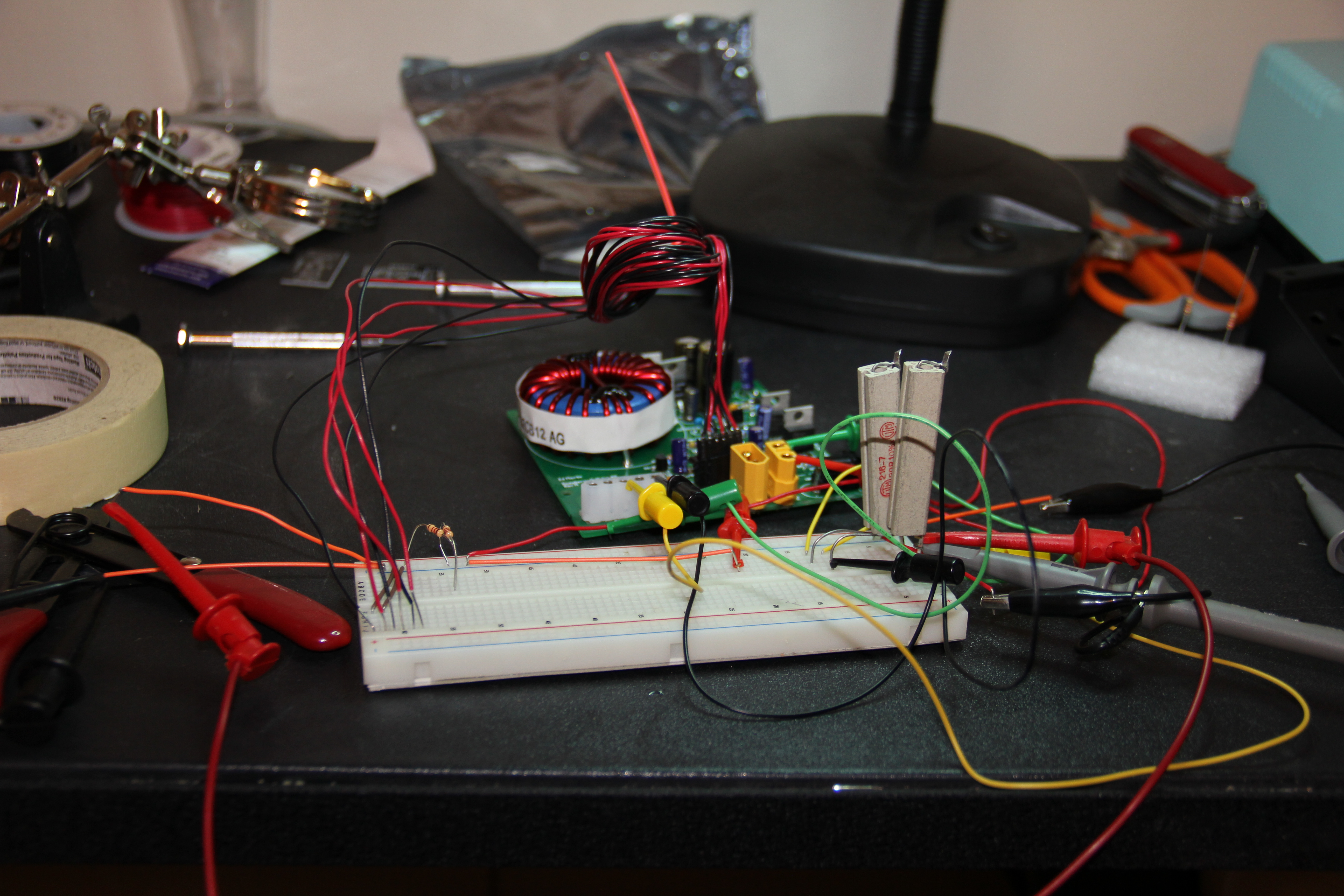

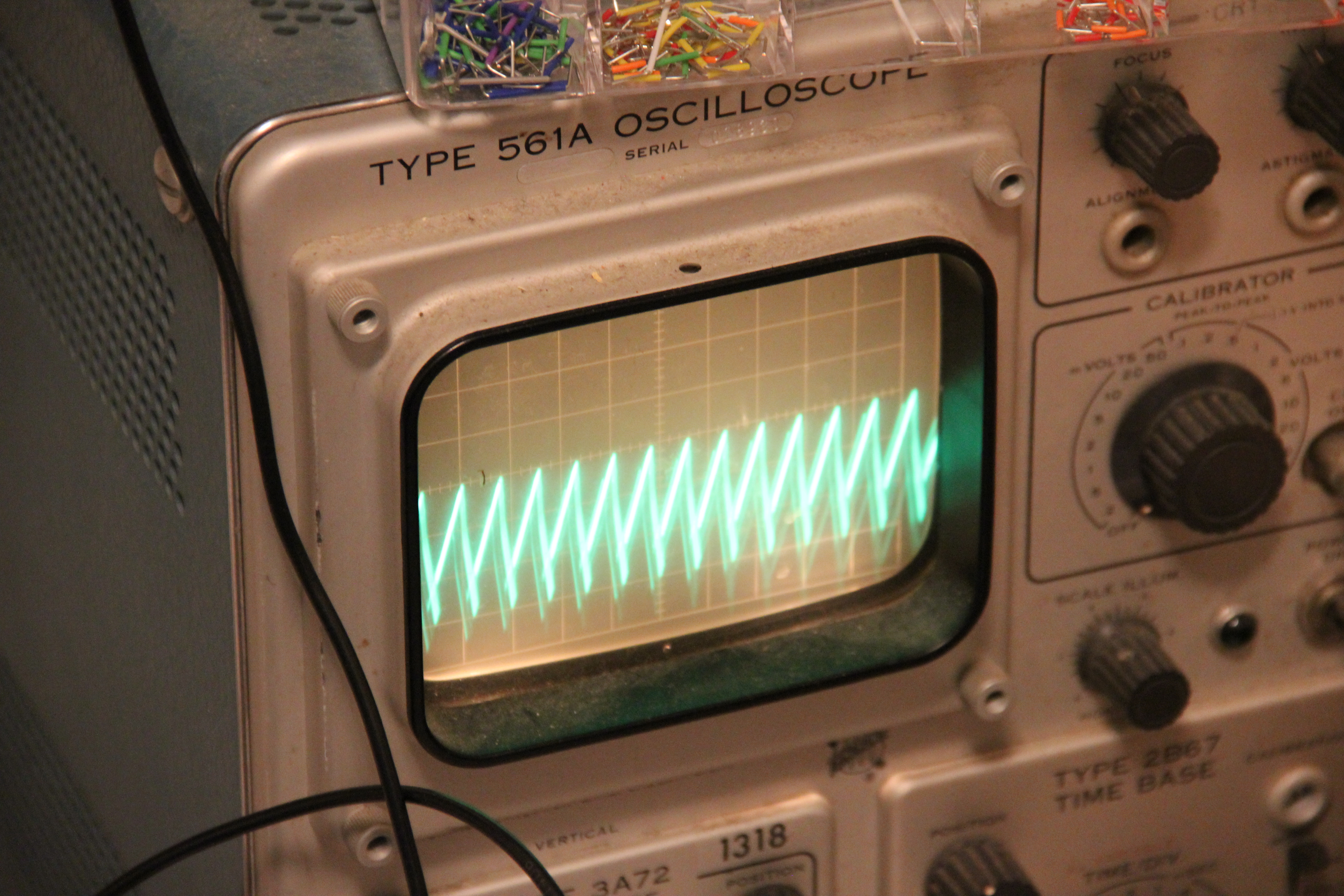

SMPS Feedback
Jul 12, 2013 @ 7:11pm

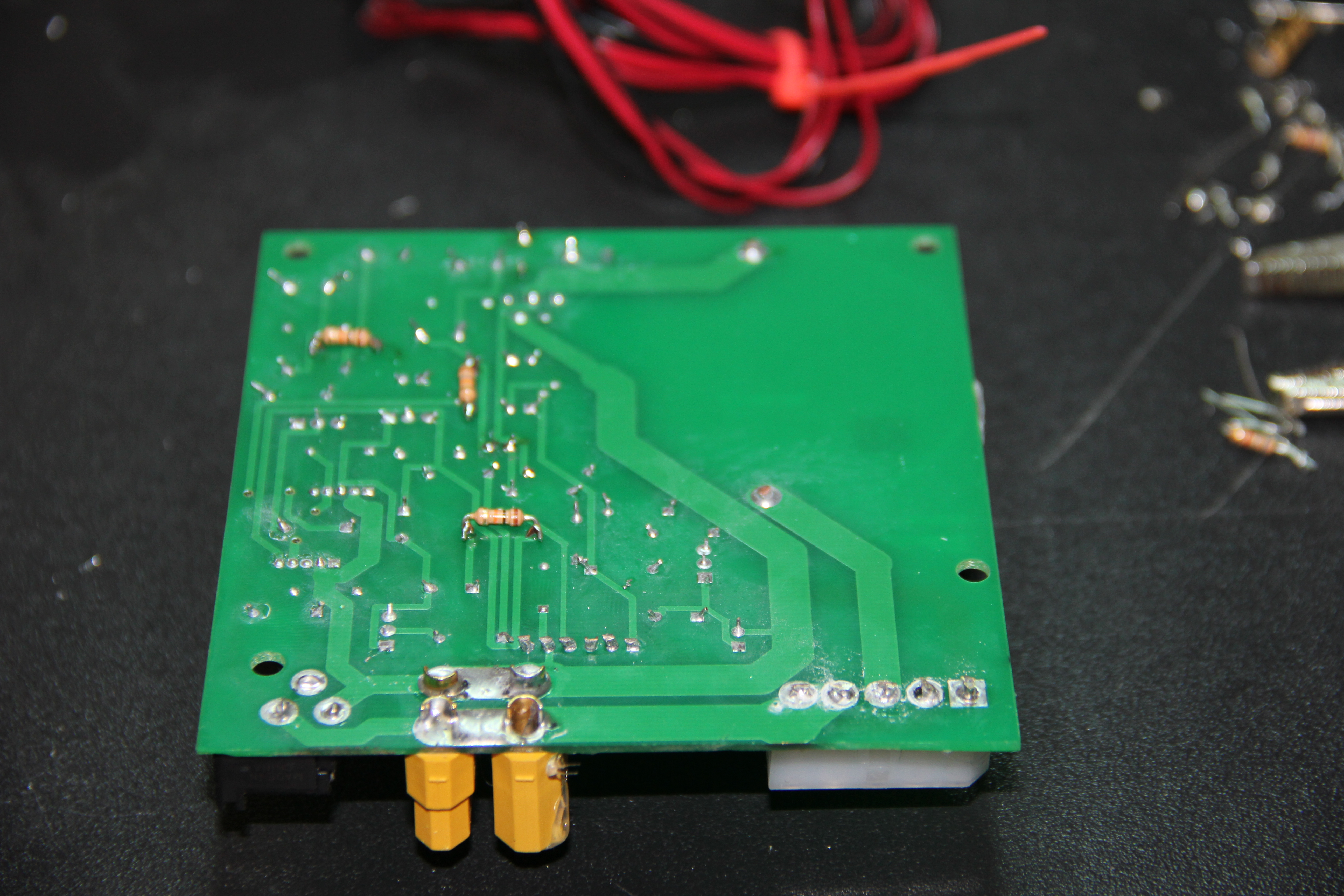

Resistors soldered to bottom to trim the voltages
Jul 12, 2013 @ 7:11pm

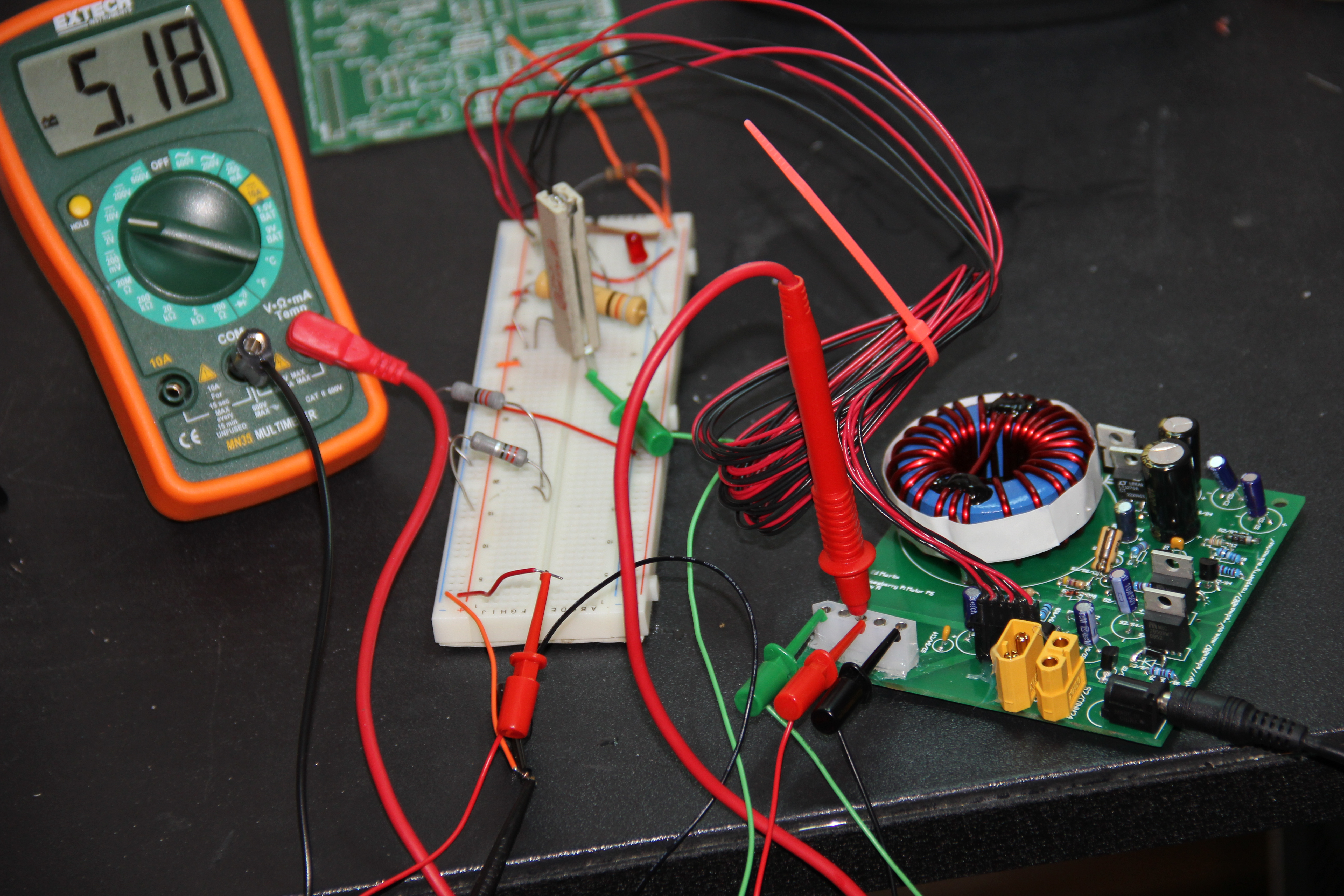

5.18V output under light load
