Gallery / RC Sub : Original Electronic Schematics -- edman007.com

Jul 12, 2013 @ 9:23pm

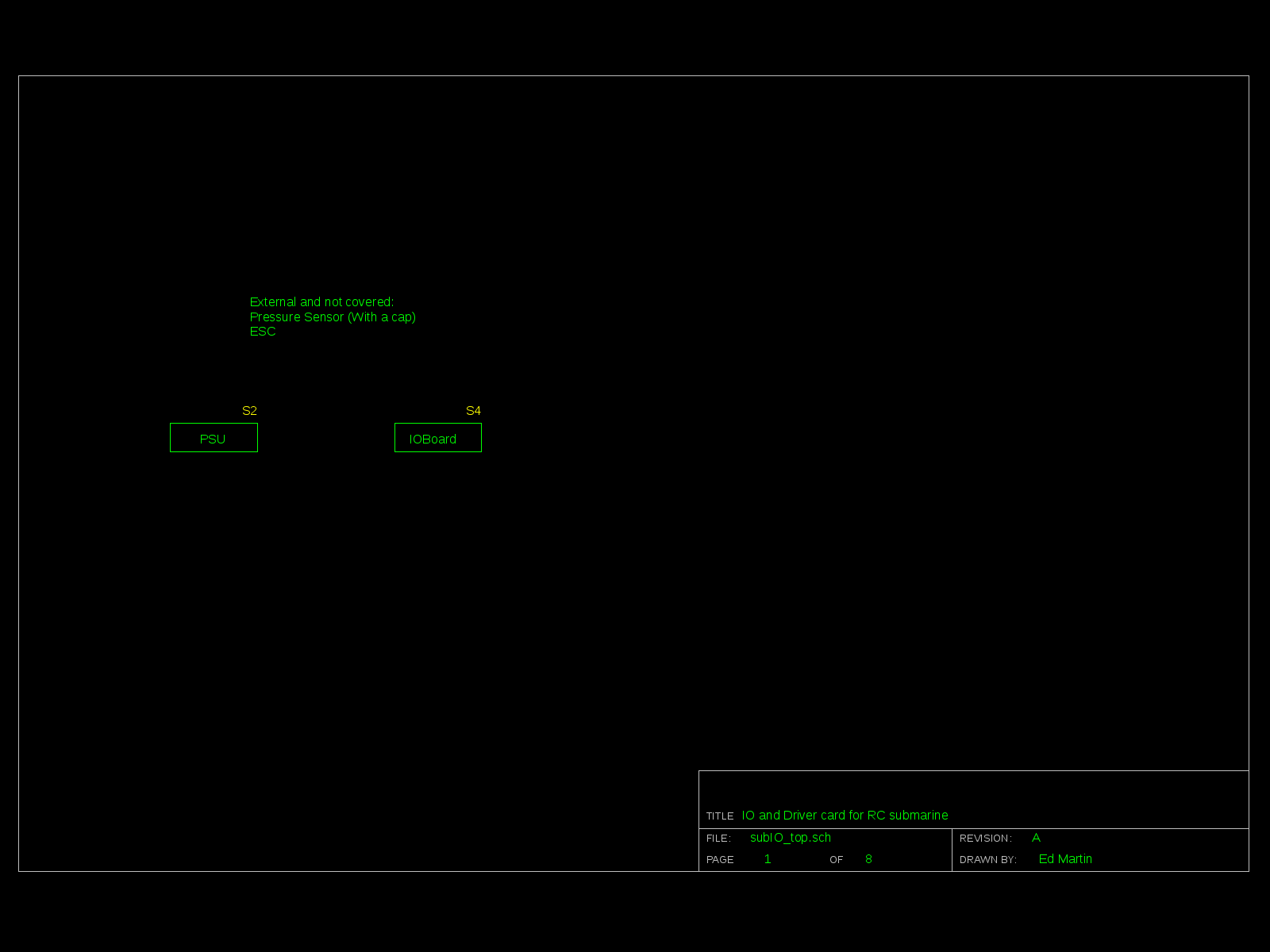

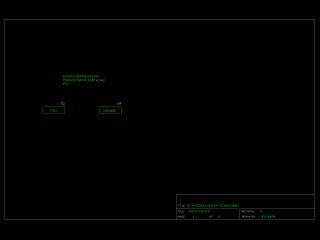

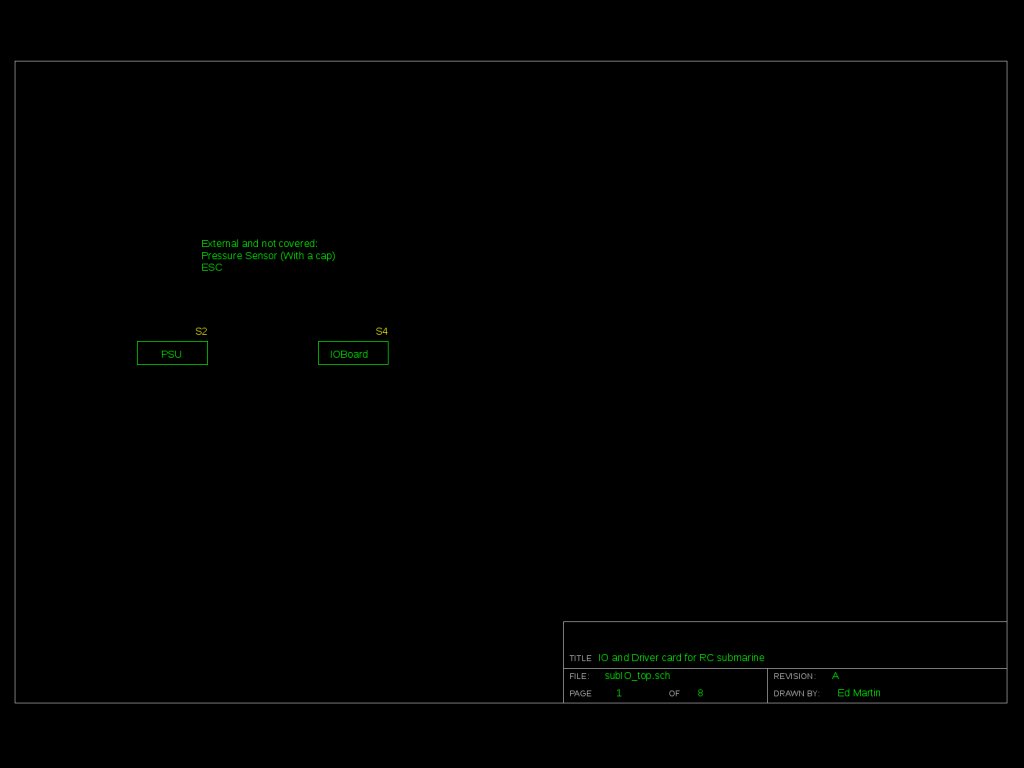

This was mostly used to put the two separate boards on one PCB

Jul 12, 2013 @ 9:23pm

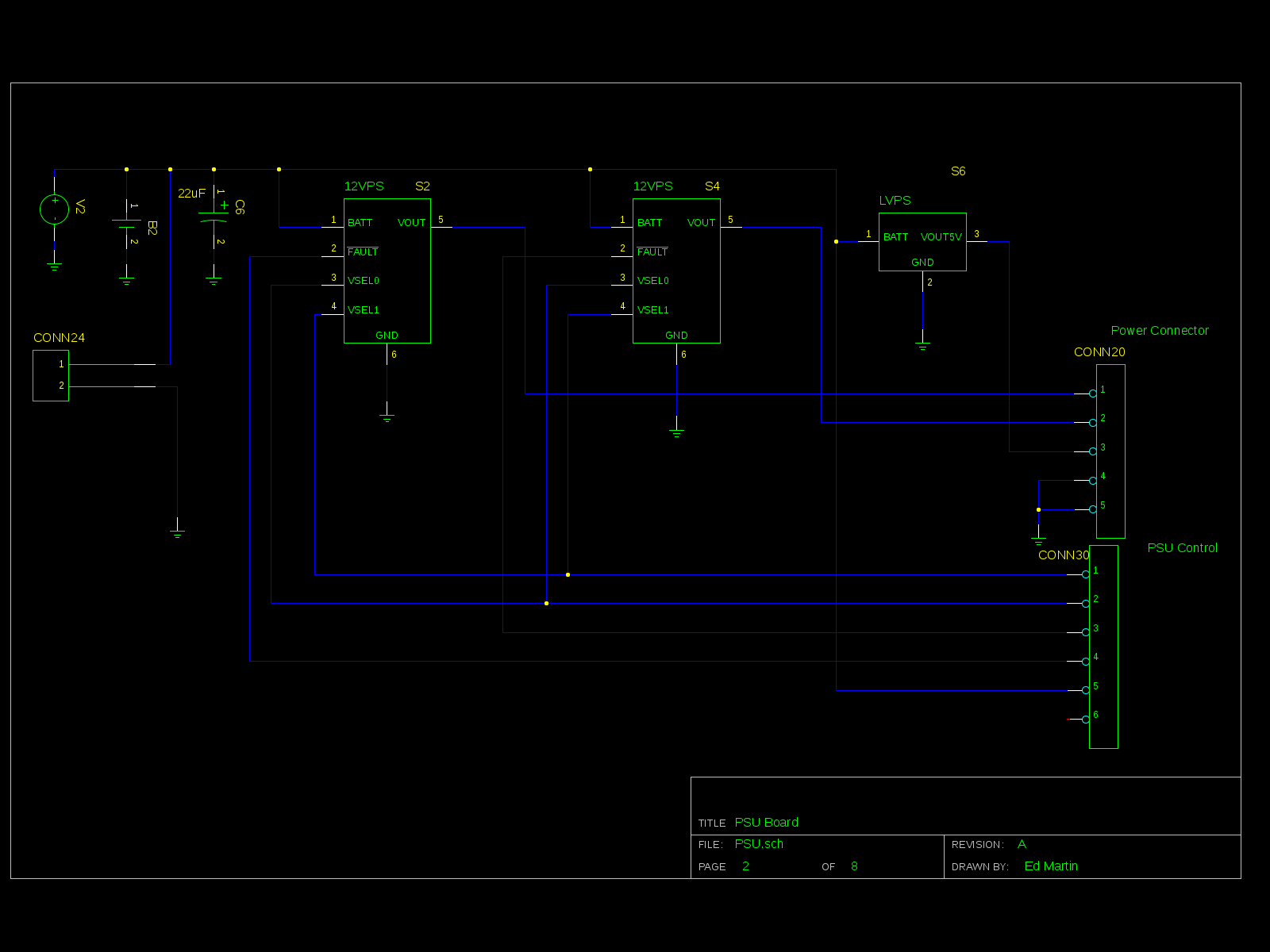

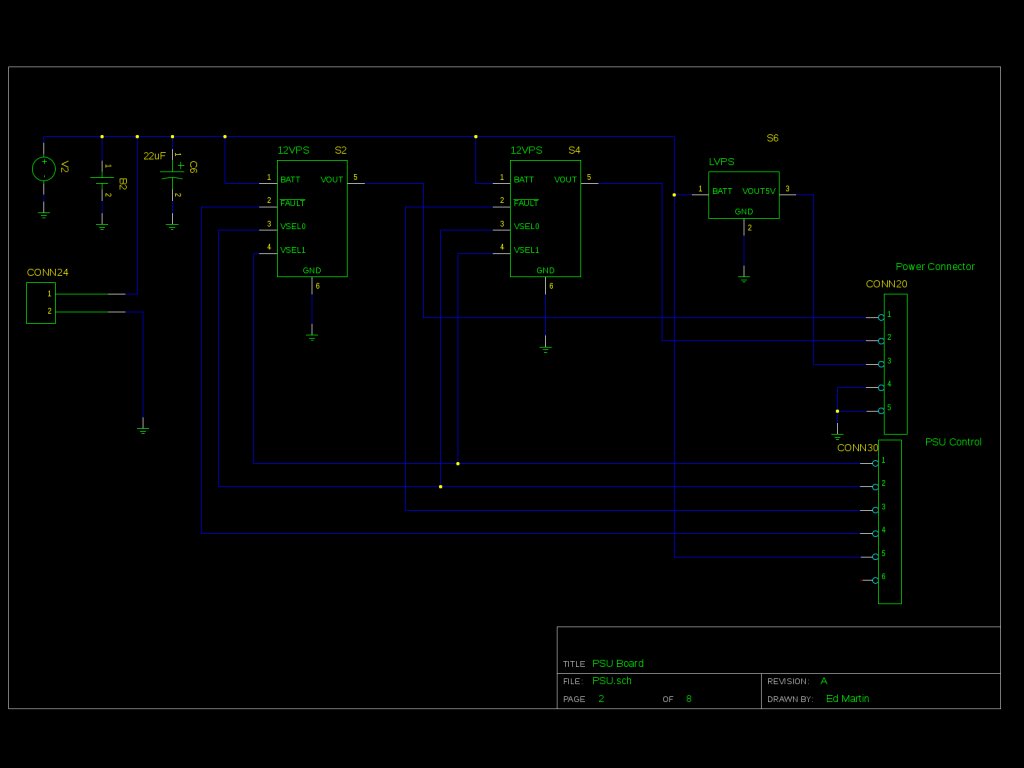

The power supply top level schematic

Jul 12, 2013 @ 9:22pm

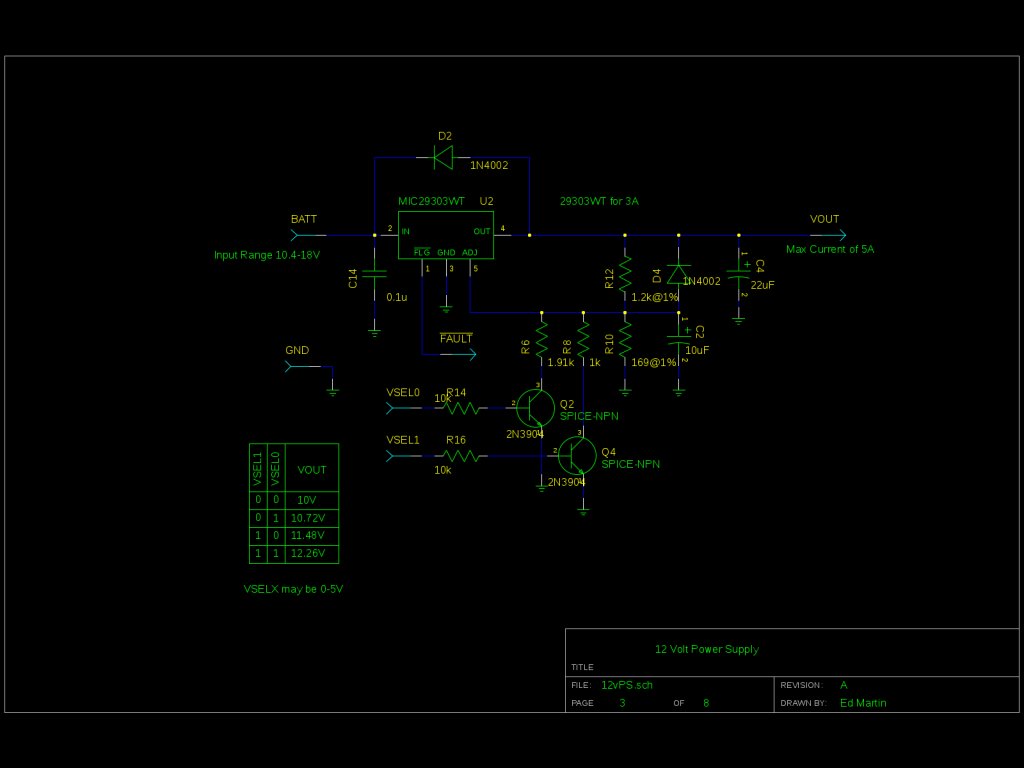

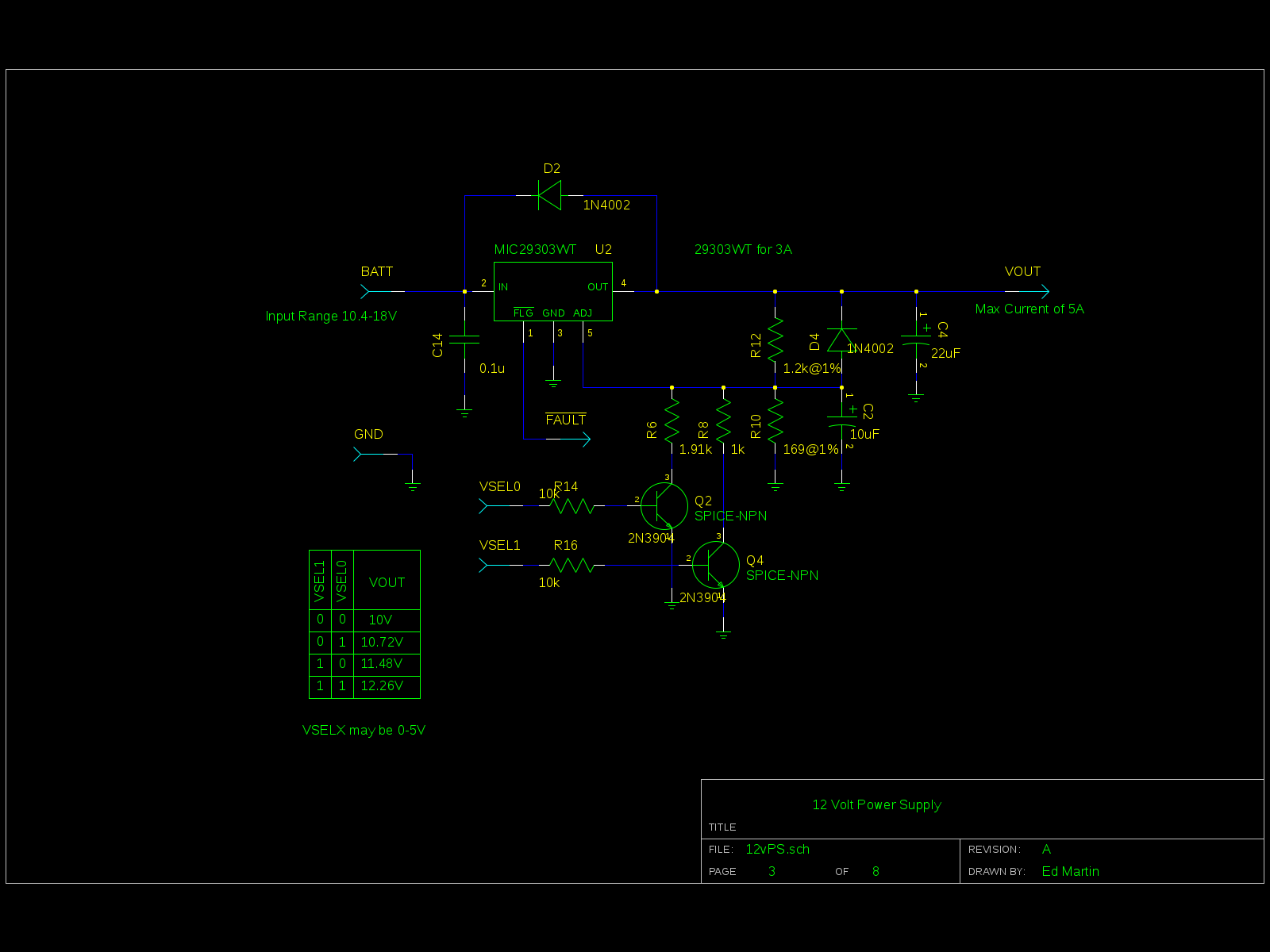

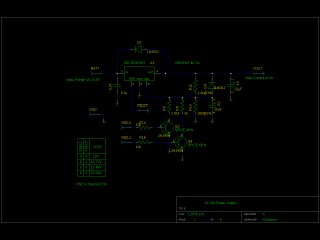

The 12V Power Supply

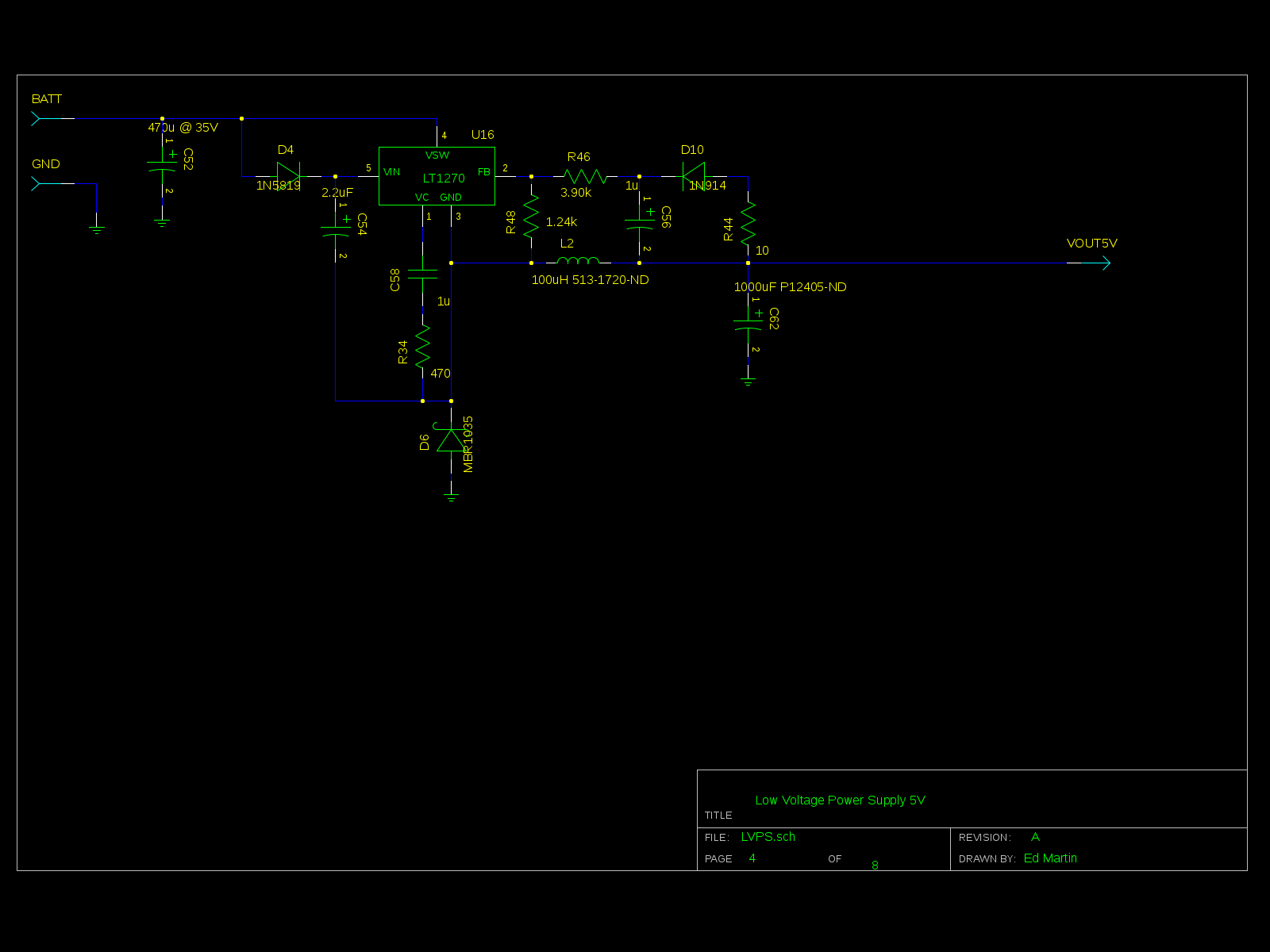

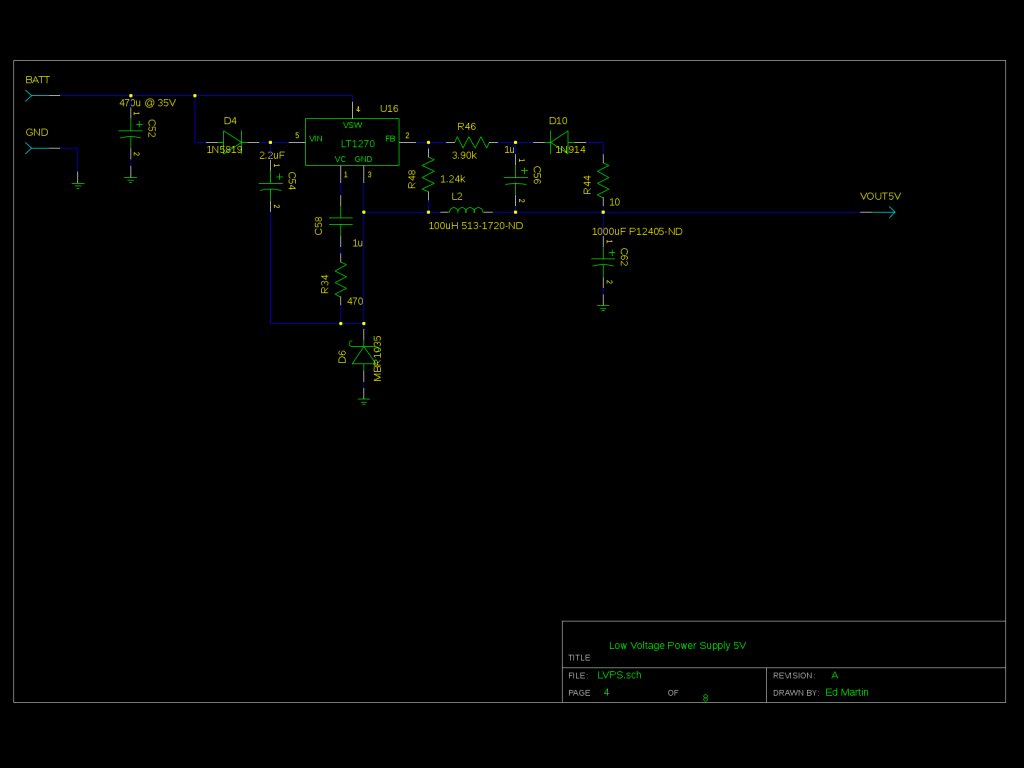

Jul 12, 2013 @ 9:23pm

The major error here is the negative of C56 should be connected between R48 and L2

Jul 12, 2013 @ 9:23pm

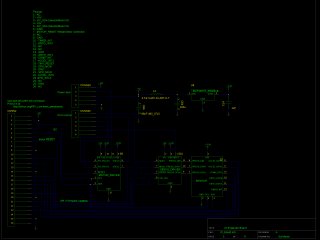

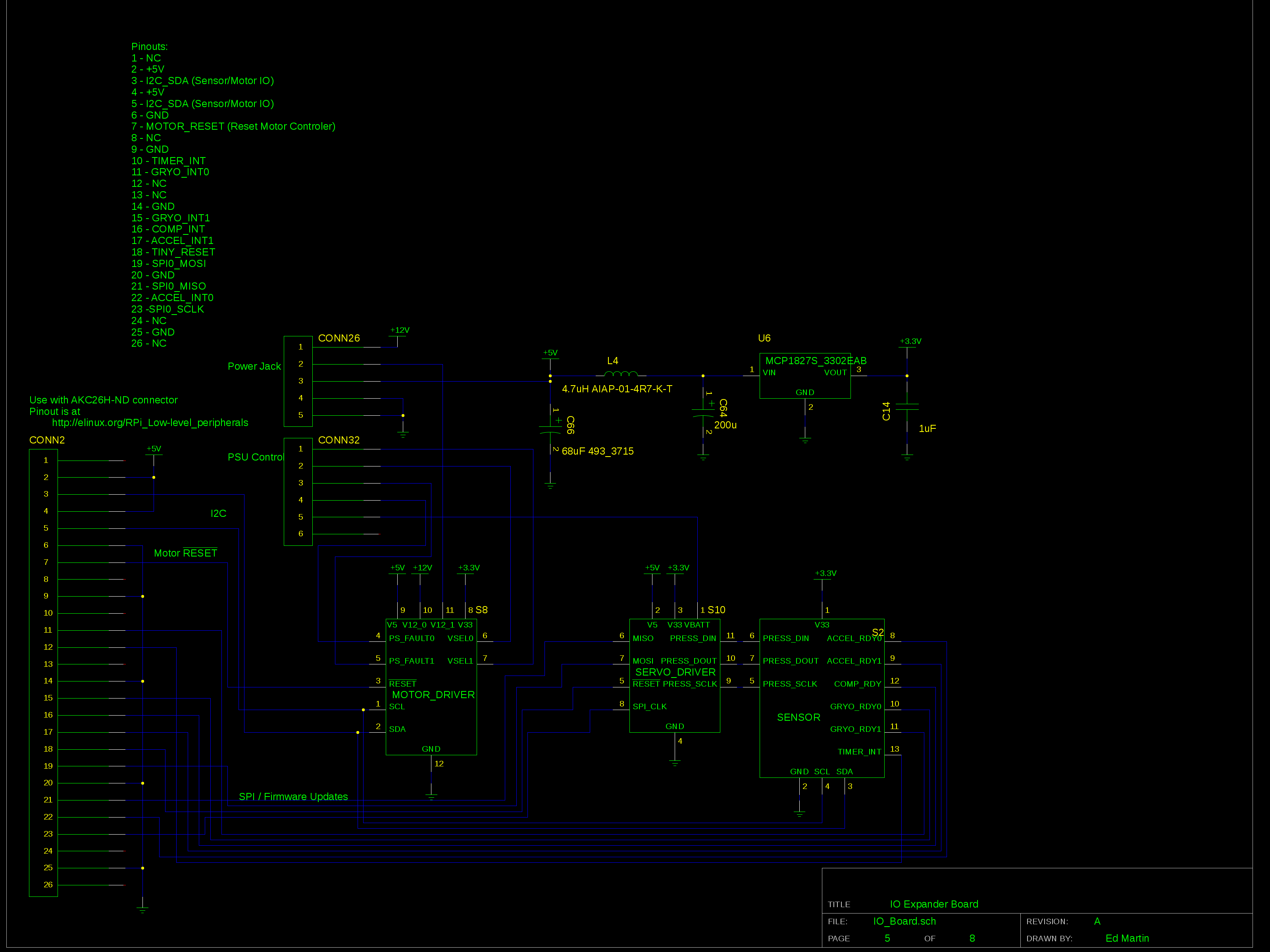

The Raspberry Pi top level I/O interface schematic

Jul 12, 2013 @ 9:23pm

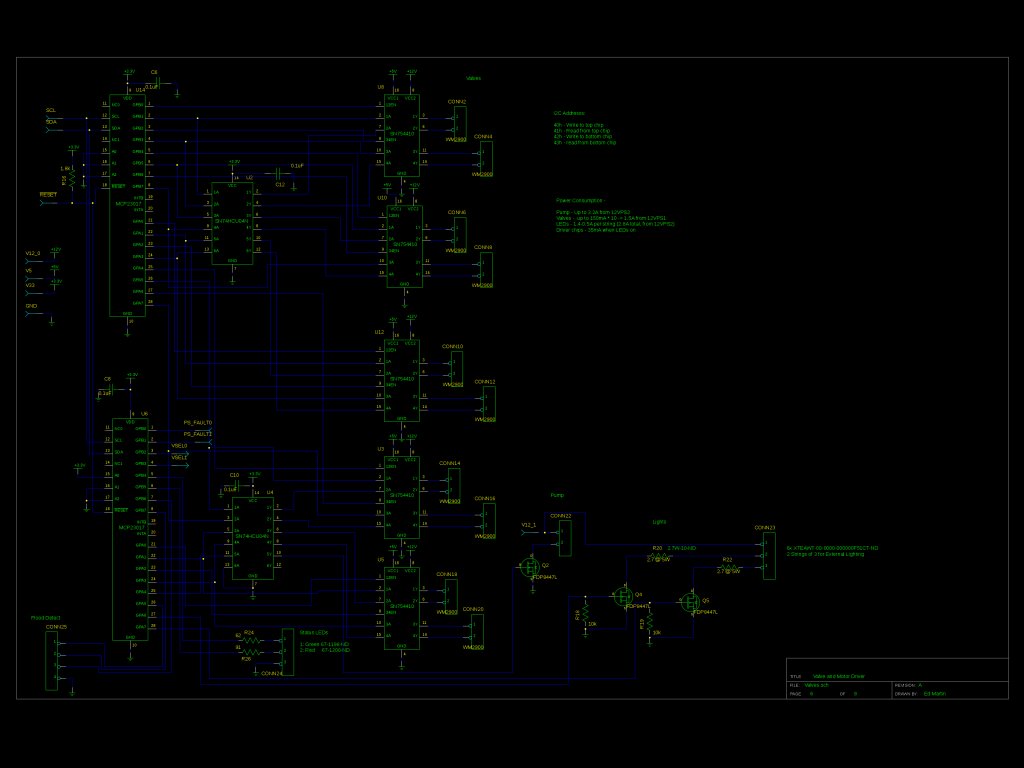

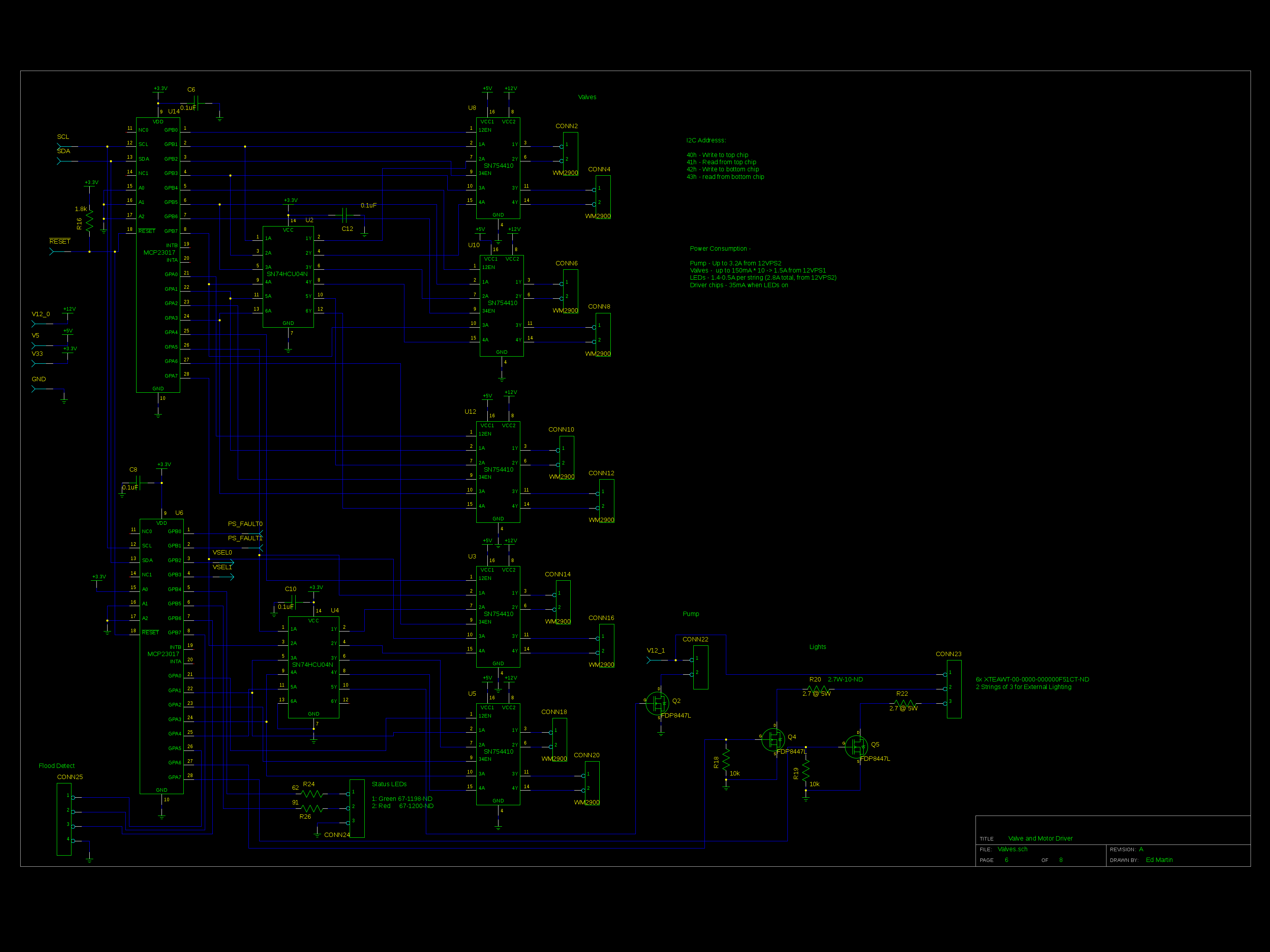

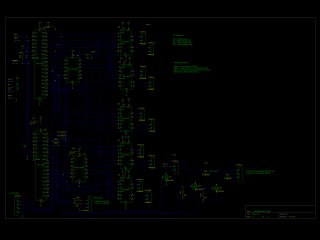

Controls the [up to] 10 valves, pump, LEDs, and flood detect sensors

Jul 12, 2013 @ 9:23pm

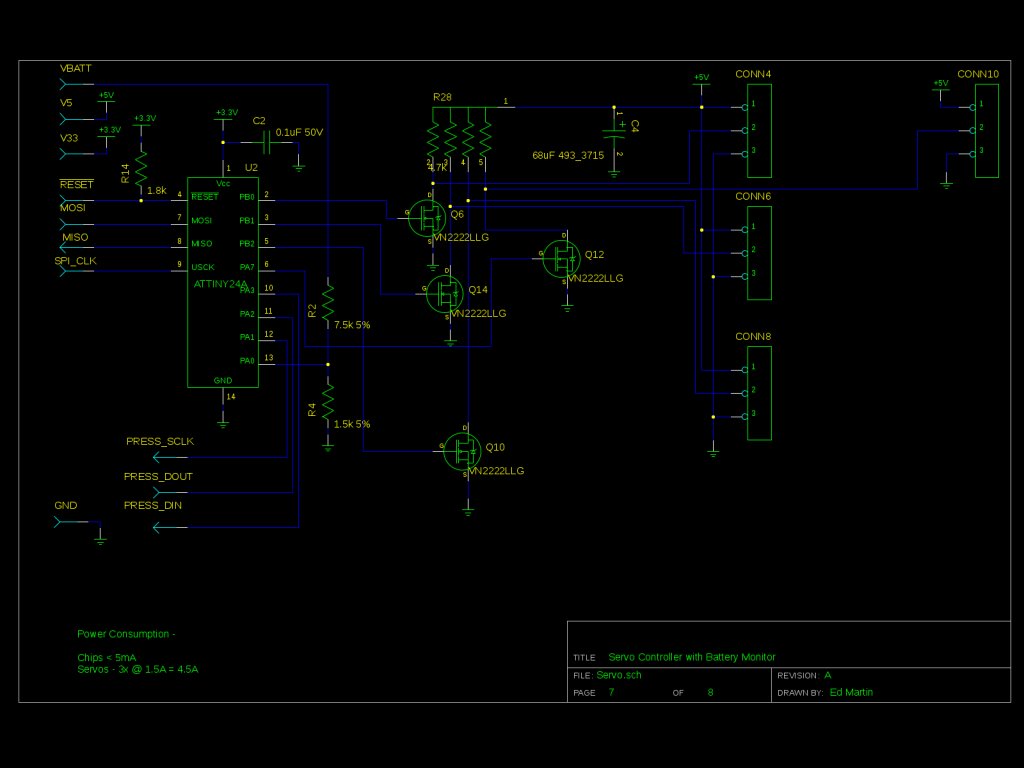

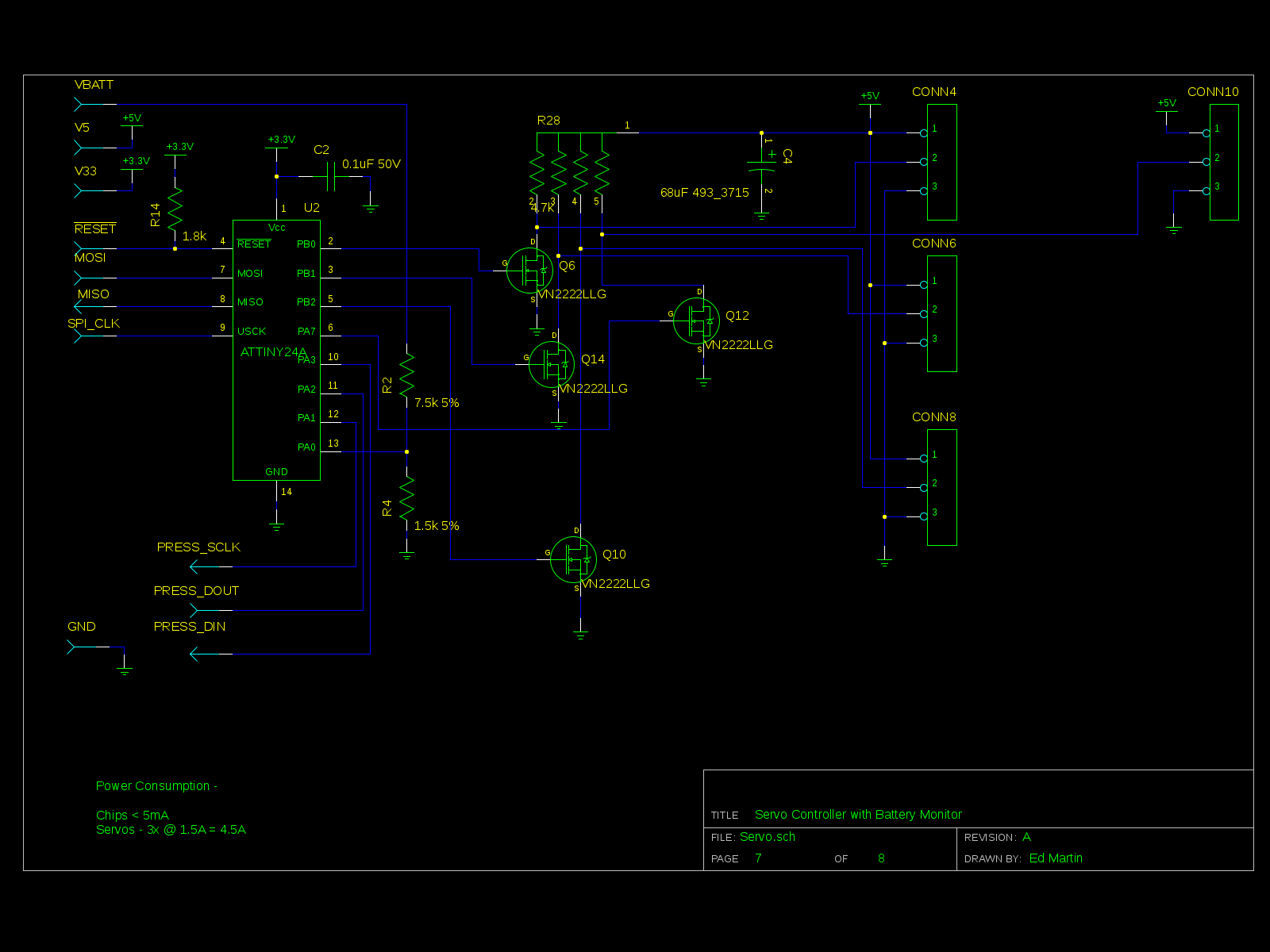

The Raspberry Pi talks to the AVR over SPI to control the four servo outputs and read the pressure values

Jul 12, 2013 @ 9:23pm

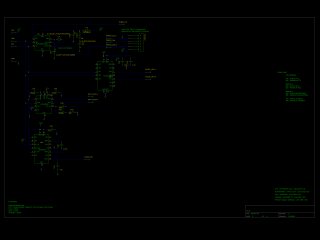

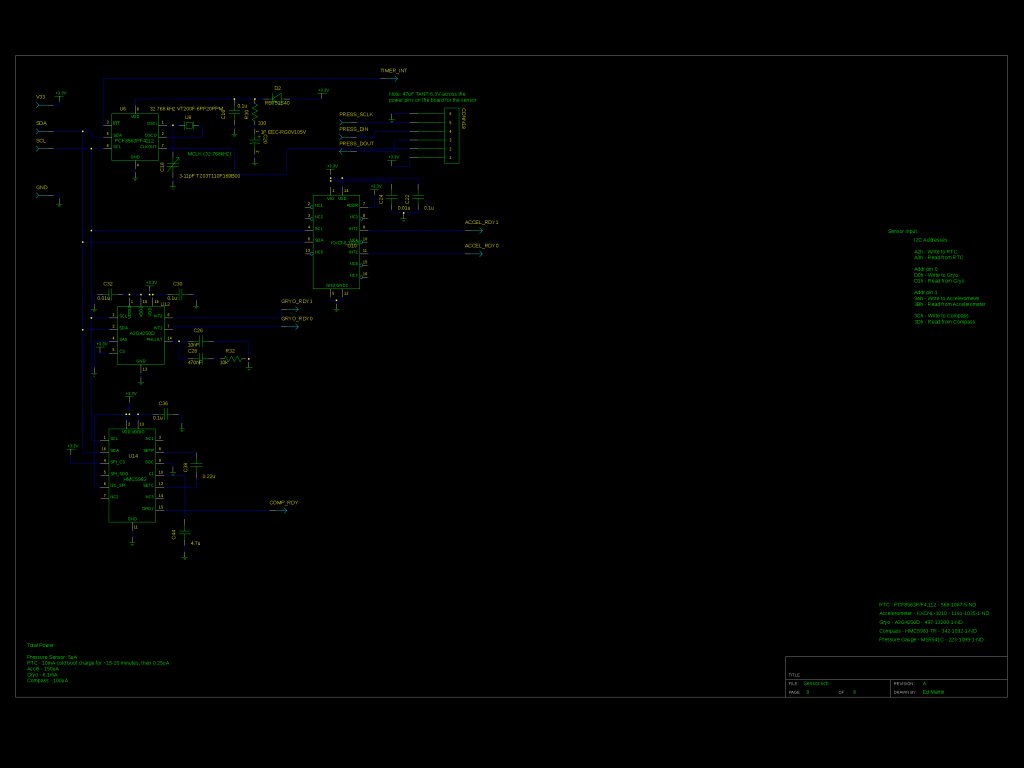

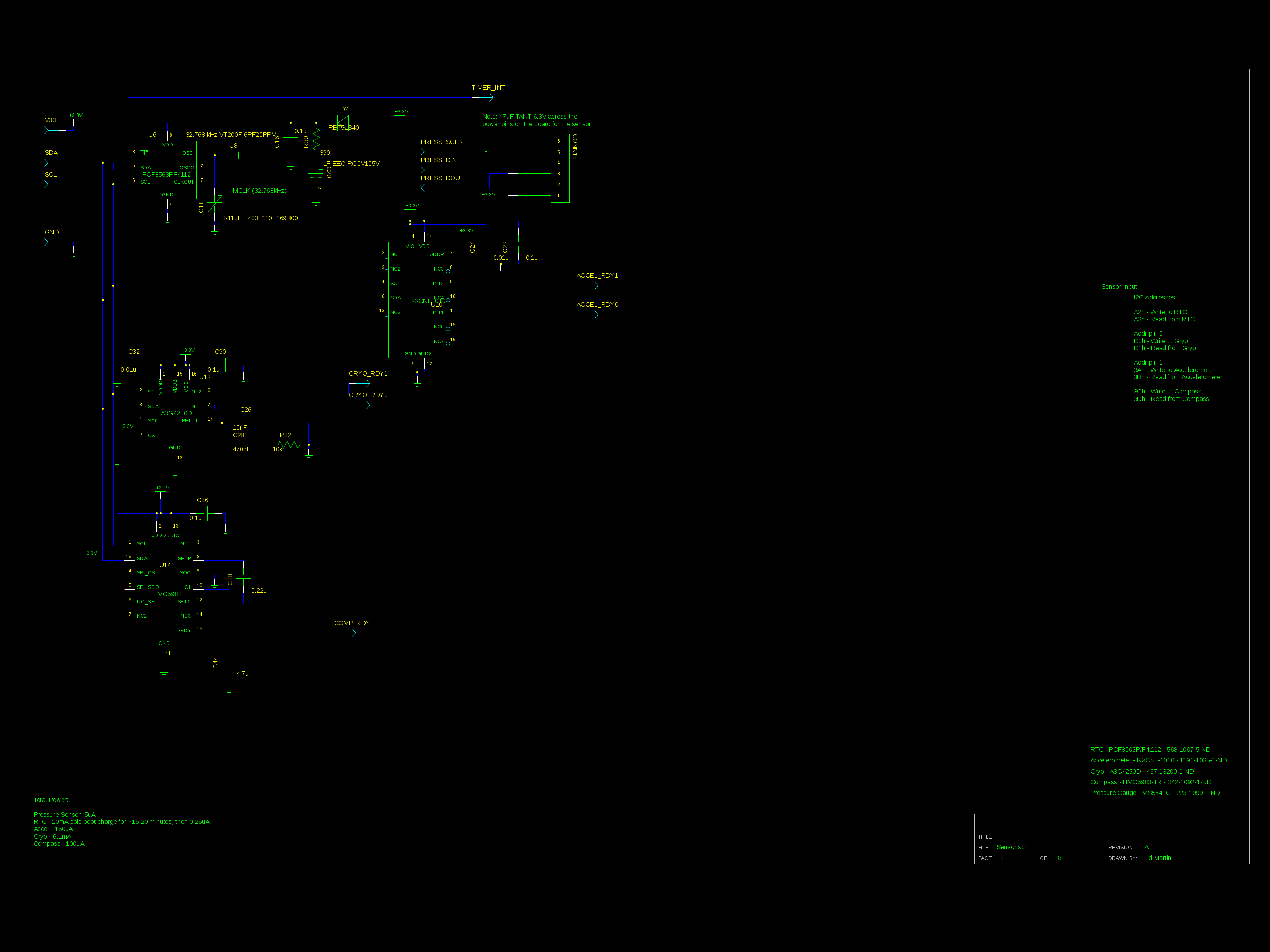

Most of these sensors were too hard to solder and I settled on the more expensive SparkFun board
